Daystar JEEP RENEGADE Rock Slider Installation Write-Up

wayoflife

Administrator
Staff member
As amazingly capable as the Jeep Renegade is and especially so with the Trailhawk version of it, there is one thing that it really should have come with from the factory and keeps it from being a more worthy off road vehicle - ROCK SLIDERS! Without them, it doesn't take much to damage the plastic rocker trim, pinch seam and even the doors when you're playing on the rocks. Fortunately, Daystar recognized the need for rocker protection on a Renegade and came out with an awesome set that wraps all the way around the pinch seam, all the way to the front and rear of it and it even has an internal structure that presses firmly against the body to help distribute the load caused by a hard hit. Another nice feature of the Daystar Rock Sliders is the addition of a tube extending out from it to help protect your doors, act as a pivot point, can be used to Hi-Lift from and to a degree, act as a step. Of course, not only will these rock sliders do a great job of protecting your Renegade, they'll also make it look awesome. In this write-up, you get to see step by step instructions on how to install them.

What you will need
Daystar Jeep Renegade Rock Sliders - KJ50012BK
• 7/16" Socket & Wrench
• 19mm Socket
• 5mm Allen Wrench
• Ratchet
• Torque Wrench
• Grinder w/Cutoff Wheel
• Hand Drill (90° air drill is recommended)
• Unibit or 1/4" Metal Drill Bit
• 3/16" Metal Drill Bit
• Cutting Oil
• Center Punch
• Floor Jack
• (2) Jack Stands
• 2/16" Pop Rivet Gun (Pneumatic air pop rivet gun is recommended)
• Flat Razor
• Short Wood Pencil
• Safety Glasses
• 2x4 Wood
• Scissors
• Ruler

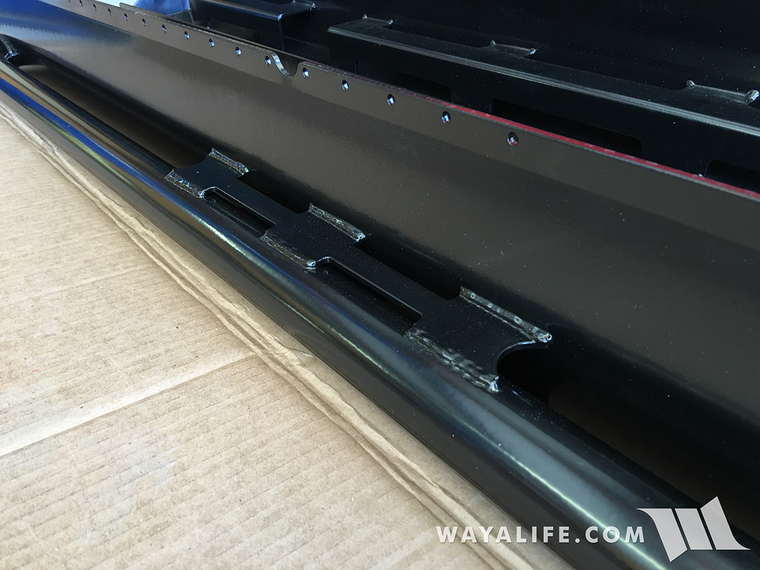

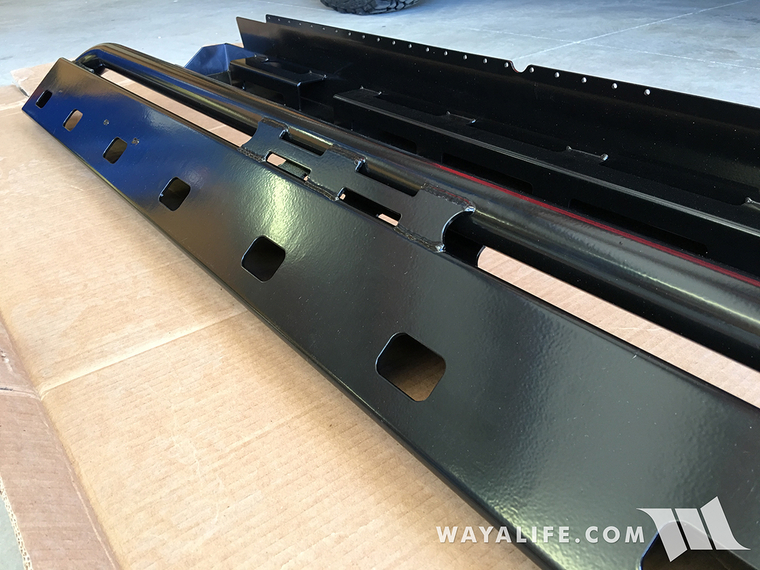

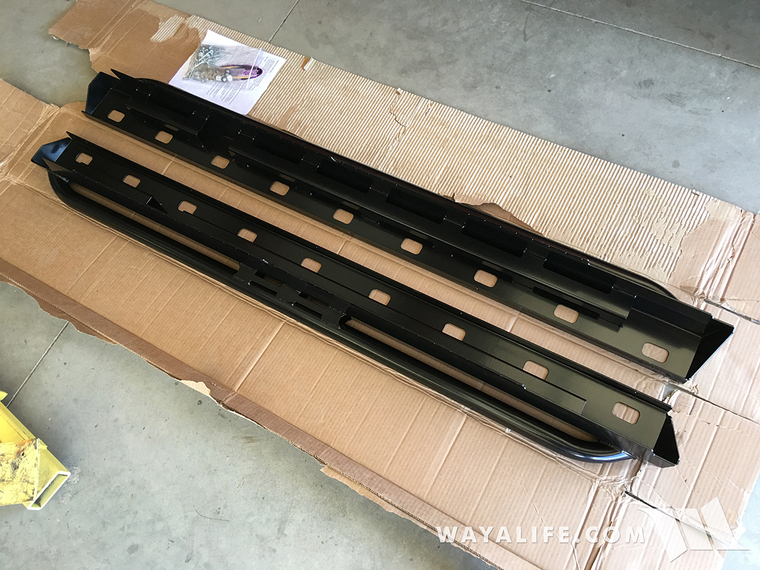

A few shots of what the Daystar Jeep Renegade Rock Sliders look like right out of the box. As you can see, they come powder coated black, are incredibly stout and are designed to wrap around the pinch seam and have blocks within them to help distribute the load caused by hits.
main.php


main.php


main.php

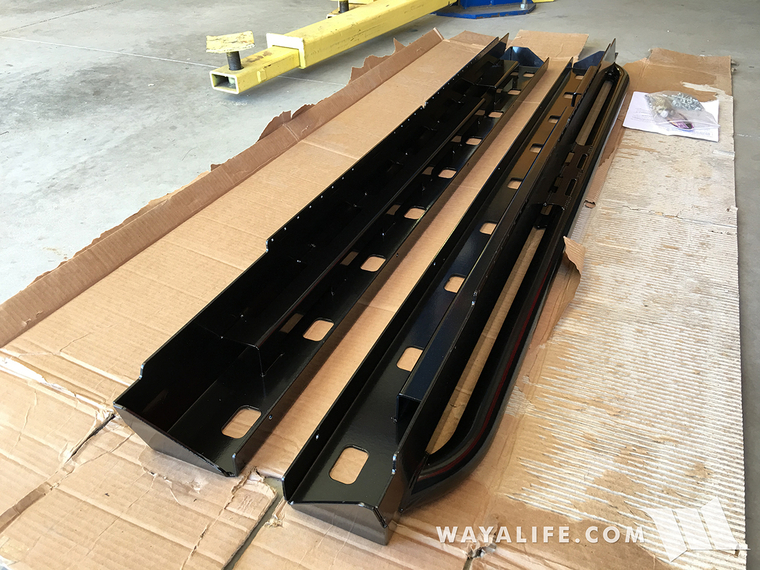

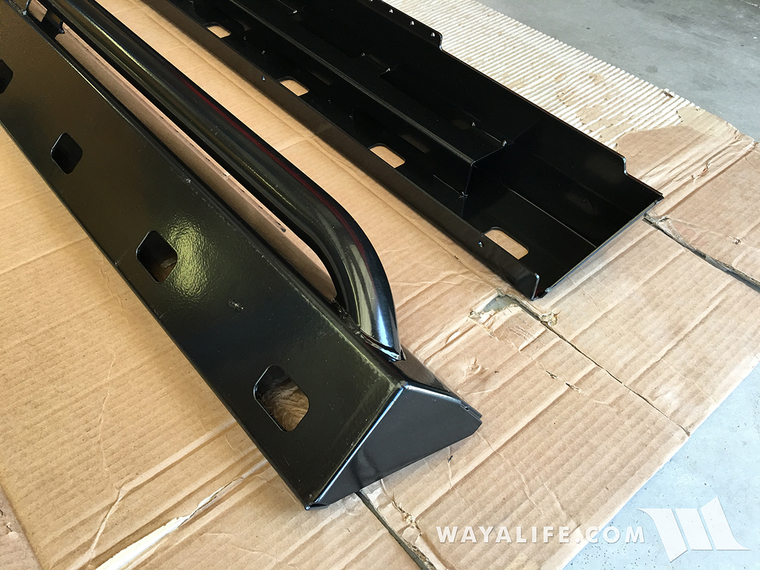

This is what the bottom of them look like.
main.php


main.php


Instructions

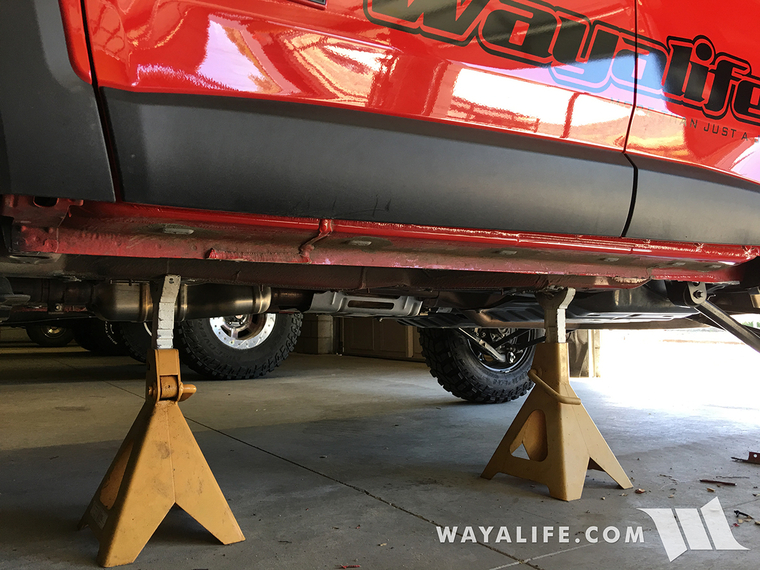

1. Place a floor jack under the driver side frame rail of your Renegade, lift it up and then set it back down on 2 jack stands as shown.
main.php


2. Using 19mm socket, remove both driver side wheels and set them aside.
main.php

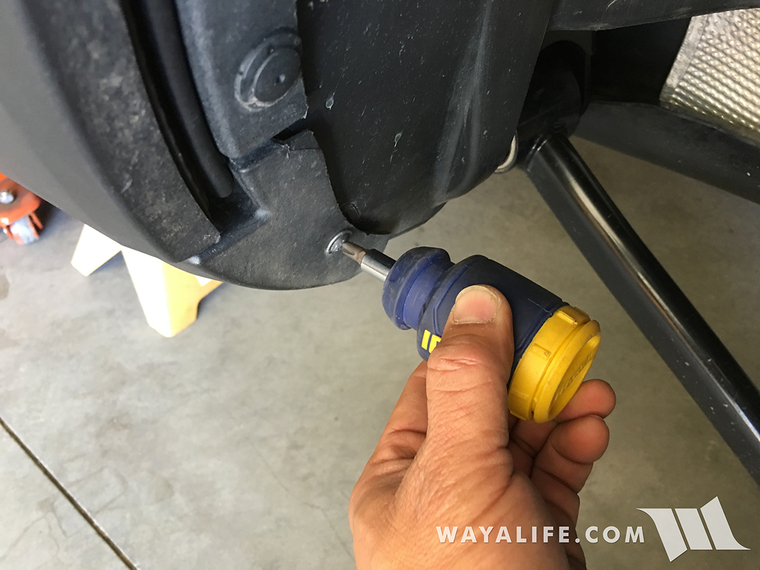

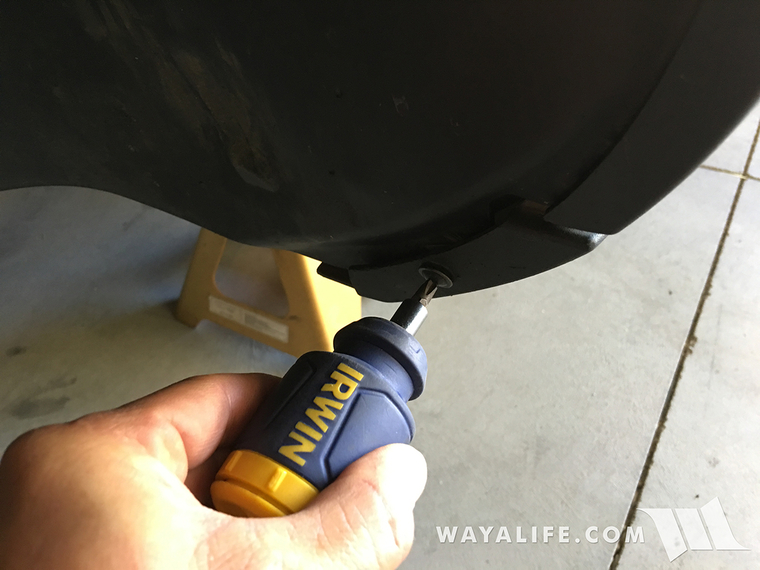

3. Using a phillips screwdriver, remove the screw securing the forward end of the plastic rocker trim to the inner fender liner and body.
main.php

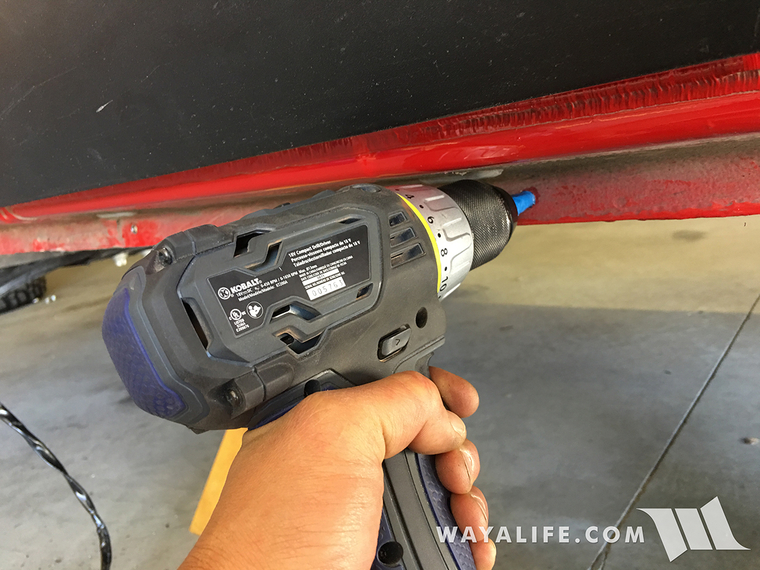

4. Again, using a phillips screwdriver, remove the screw securing the rear end of the plastic rocker trim to the inner fender liner and body.
main.php


5. Located on the bottom of your Renegade's plastic rocker trim, you will find 6 plastic fasteners securing it to brackets extending from the pinch seam. Use a flathead screw driver to lower the fastener locking pins as shown.
main.php

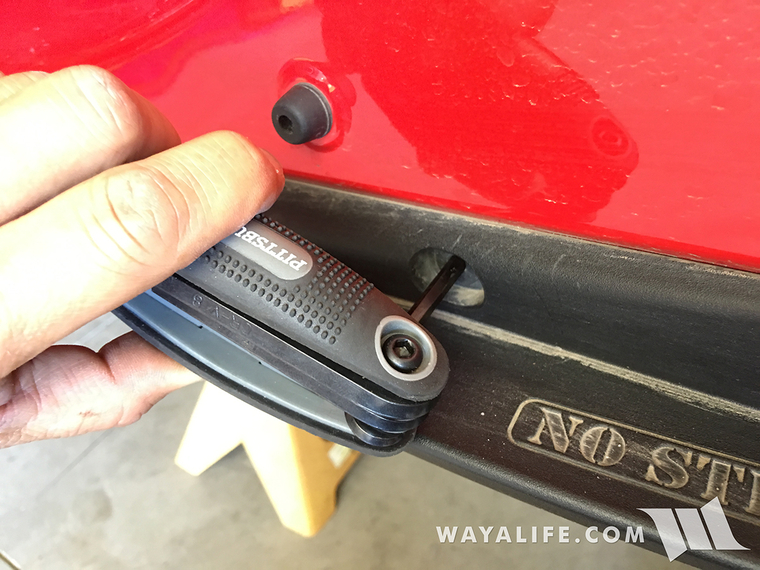

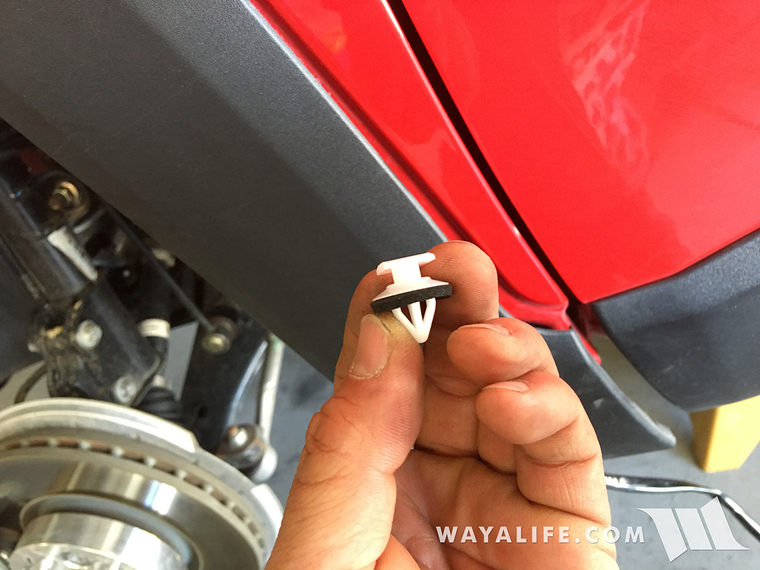

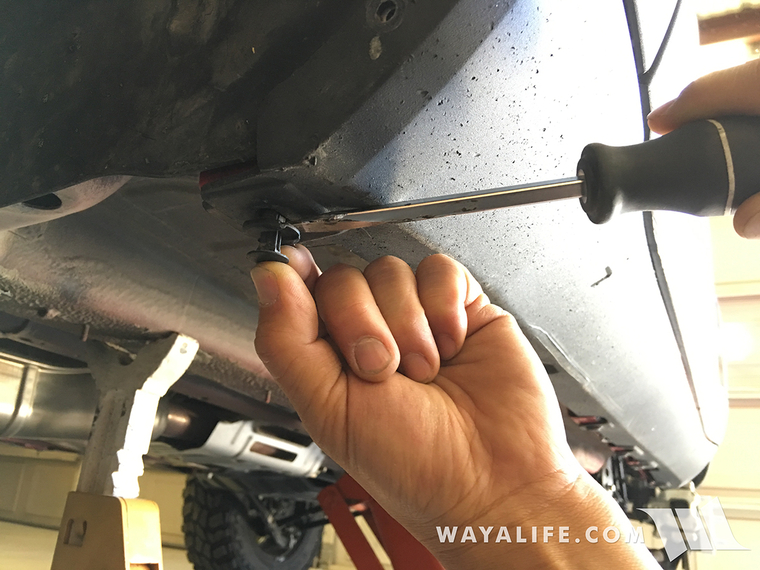

6. Use a flathead screw driver or trim pry tool to remove the fasteners from the plastic rocker trim.
main.php

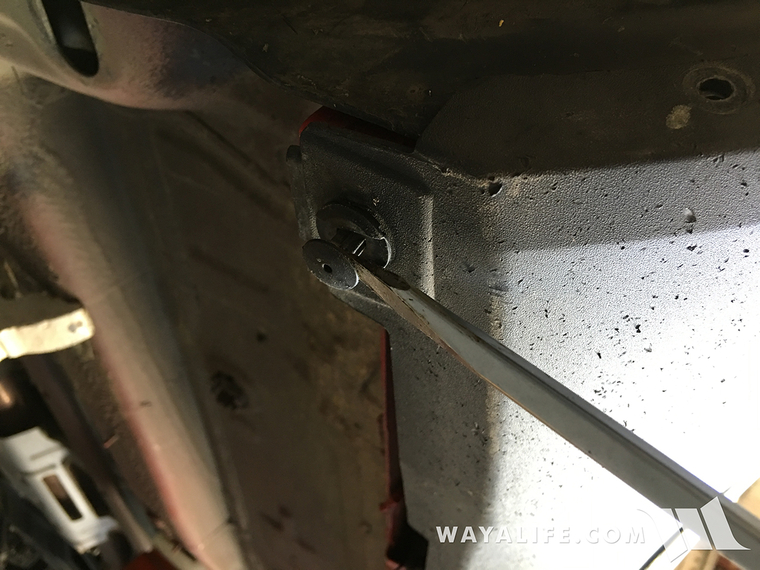

7. There is one bolt securing the plastic rocker trim to body of your Renegade and it is located next to the "NO STEP" warning label that is embossed into it. You will need to open up the rear door to access it and you will need a 5mm allen wrench to remove it.
main.php

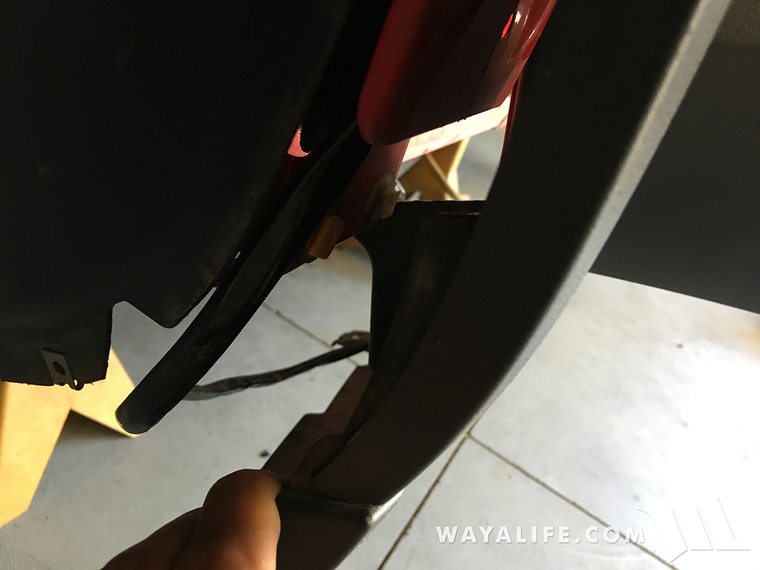

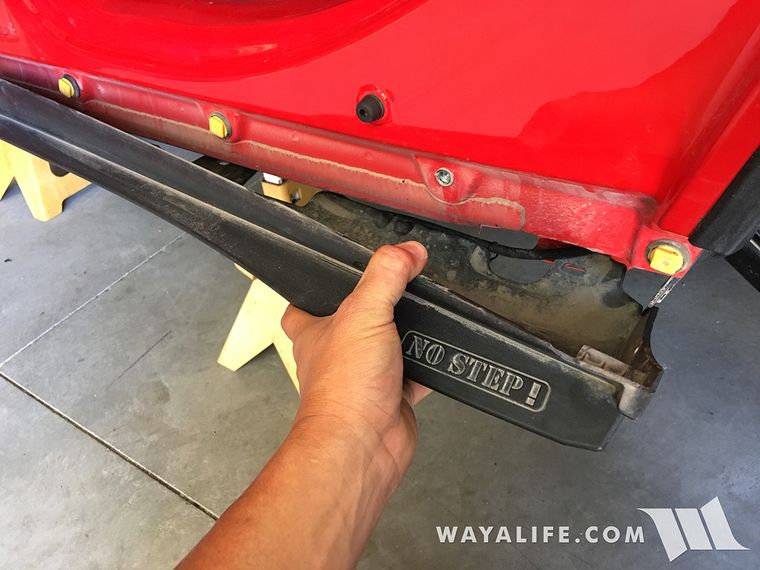

8. Pull the plastic rocker trim down and away from your Renegade's body to separate it from the plastic mounting tabs.
main.php

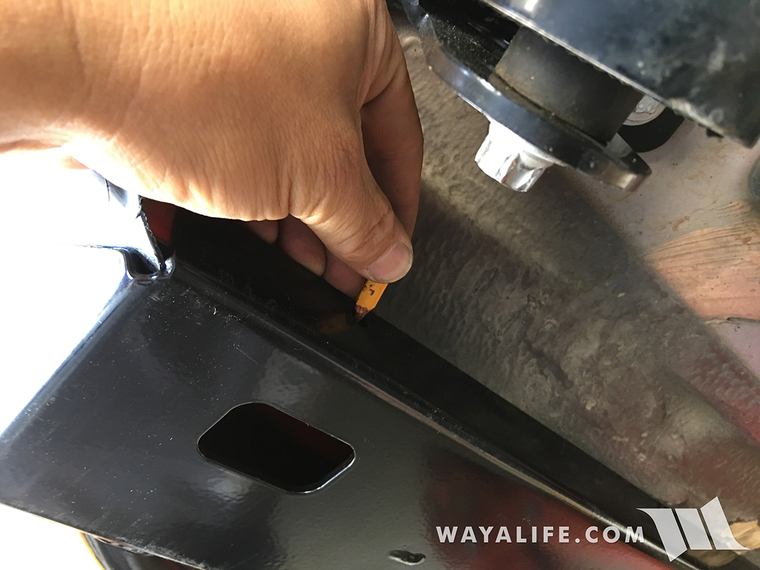

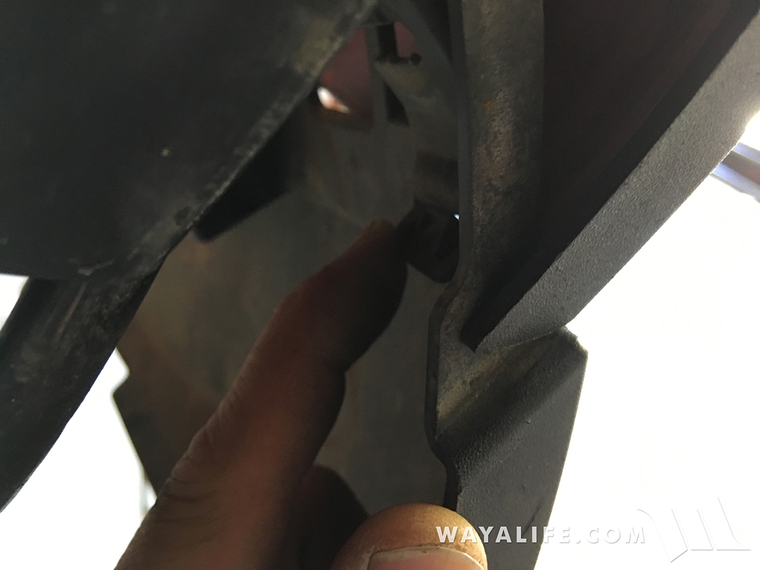

9. There is one additional tab securing the plastic rocker trim to the body of your Renegade and it is hidden behind the plastic fender trim. In order to get to it, you will need to pull the fender trim away from the body.
main.php

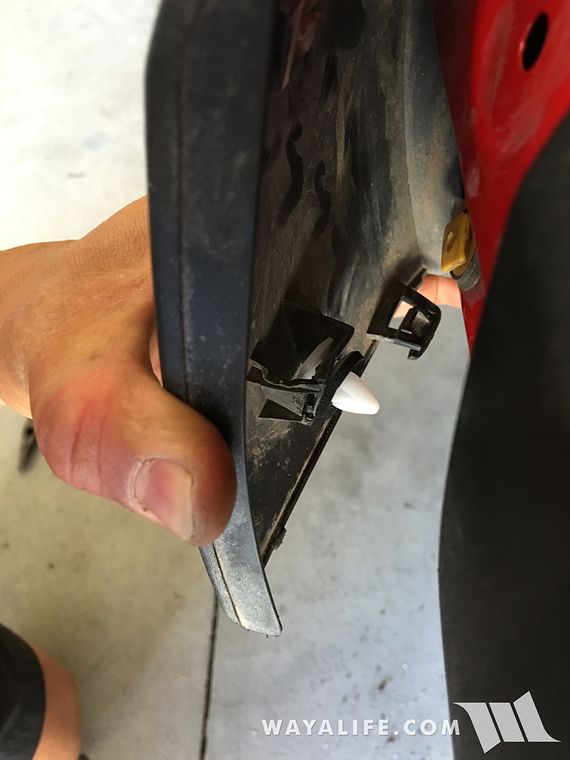

This photo is looking from the front of the trim and in it, you can see a yellow and a white square mounting tabs. The white tab is what is holding your rocker trim in place.
main.php

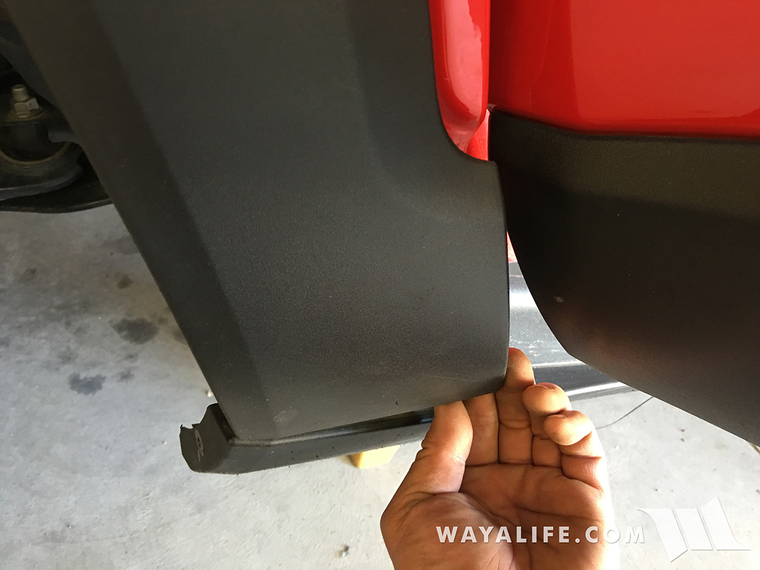

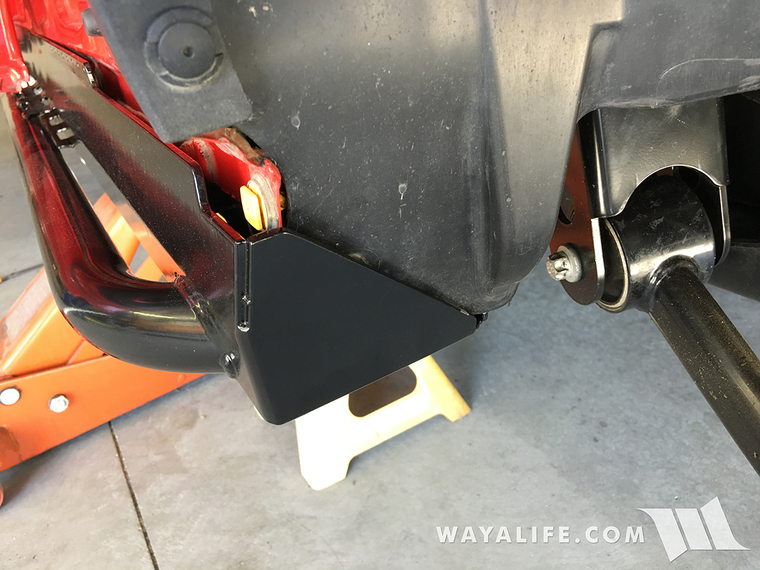

10. With the plastic rocker trim freed from all the plastic mounting tabs, there will be one more plastic tongue connecting it to the fender trim. You will need to wriggle it free of the slot it's in to completely remove the rocker trim.
main.php


11. If you ended up breaking a couple of the white plastic mounting tabs during the process of separating the fender trim from the body of your Renegade, the Daystar kit does come with a handful of replacement tabs.
main.php


To install them, simply slide the square side into the mounting slots on the fender trim as shown and then push the barbed end into the respective hole on the body until it clicks into place.
main.php

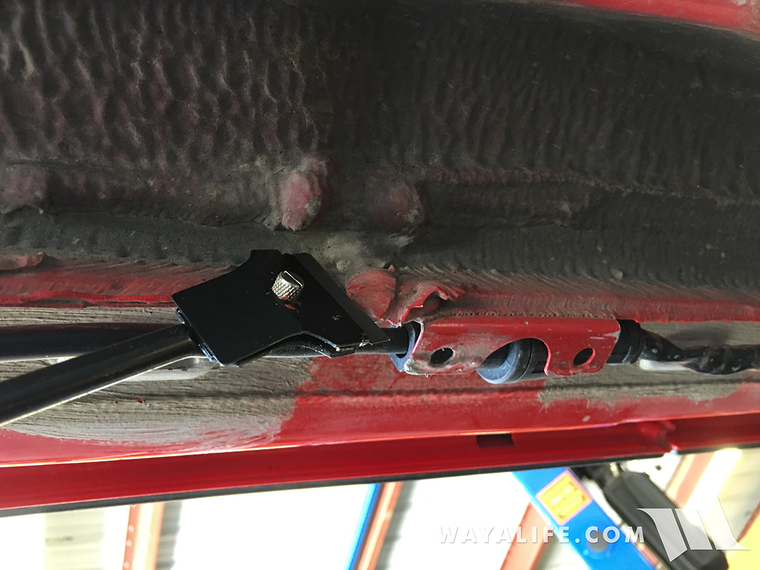

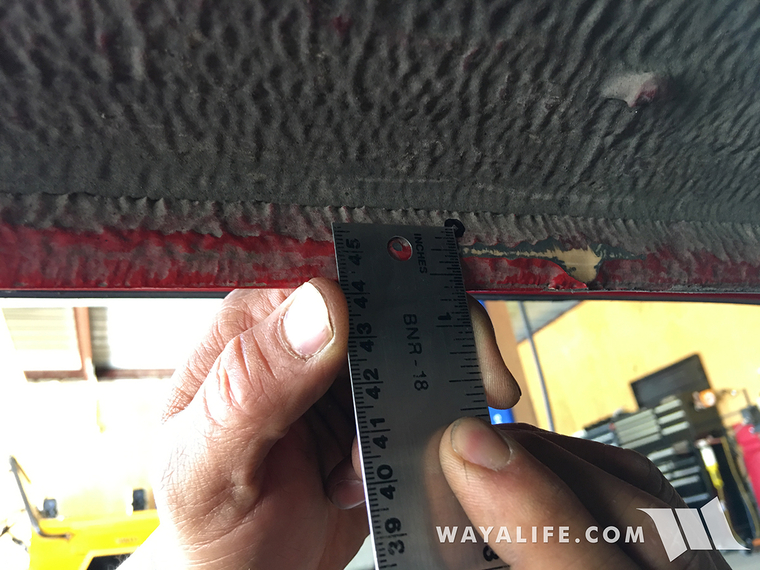

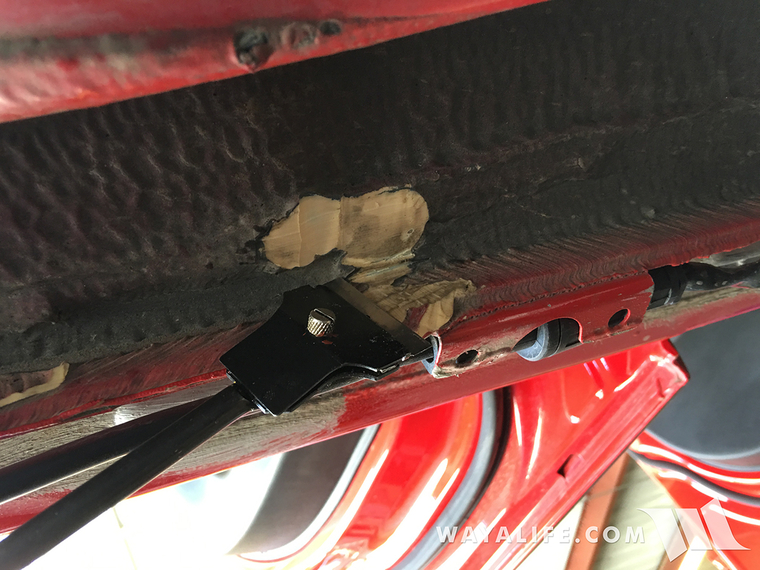

12. Climb under your Renegade and then, using a flat razor, clean up any high spots in the assembly glue located on the pinch seam and rocker. As you can see in this image, I used a gasket scraper for this job.
main.php


It is important to clean the excessive glue and create a flush surface in order for proper installation of the Daystar Rock Sliders.
main.php

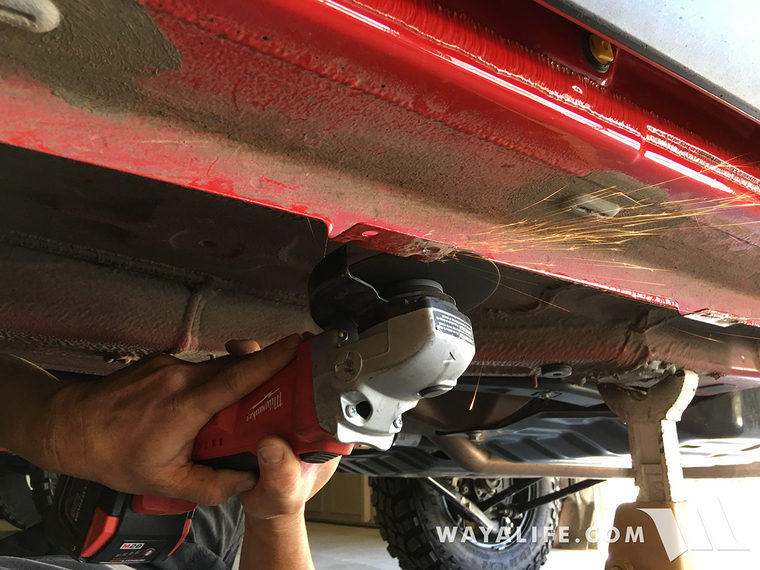

13. Using a die grinder with a cutoff wheel, cut off the 6 rocker trim mounts from the pinch seam as shown.
main.php


Here's what your pinch seam should look like once all the mounts have been removed.
main.php

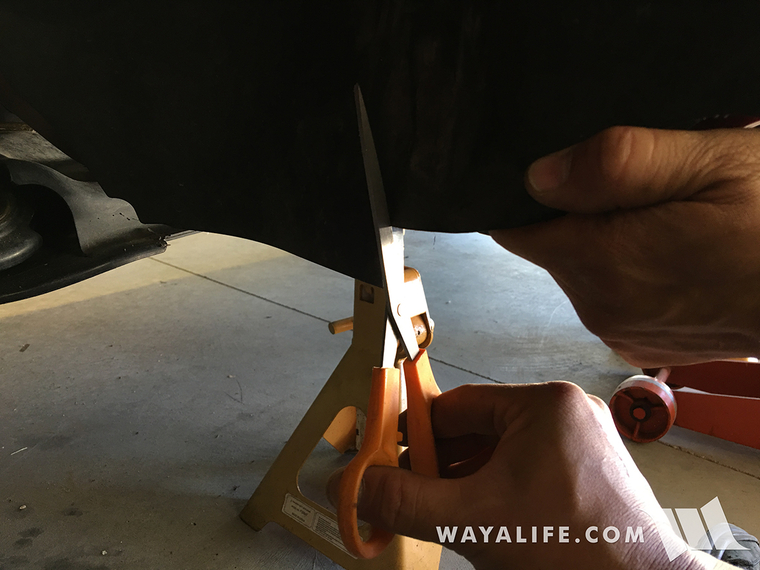

14. Using a pair of scissors, cut off about an inch off the bottom of the plastic fender liner as shown.
main.php


You just need to cut to just past the rectangular pinch seam dimple. Once everything is installed, the remaining fender liner will tuck behind the forward end of the Daystar Rock Slider.
main.php

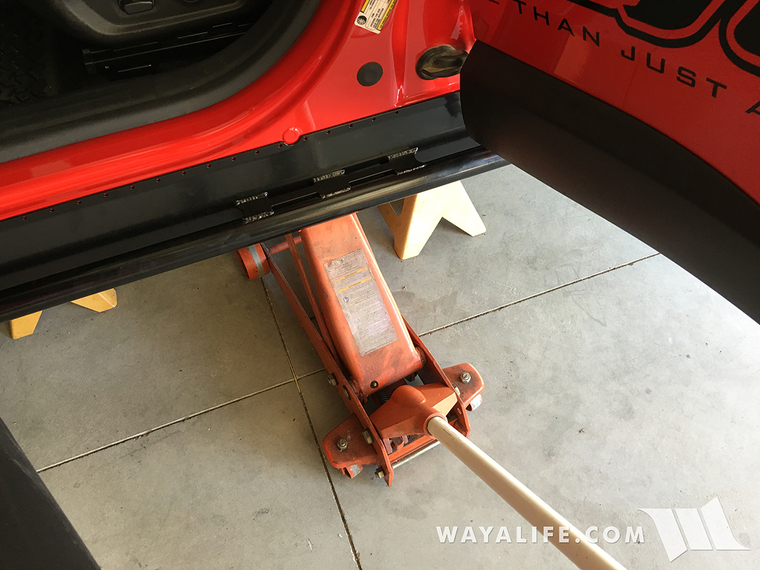

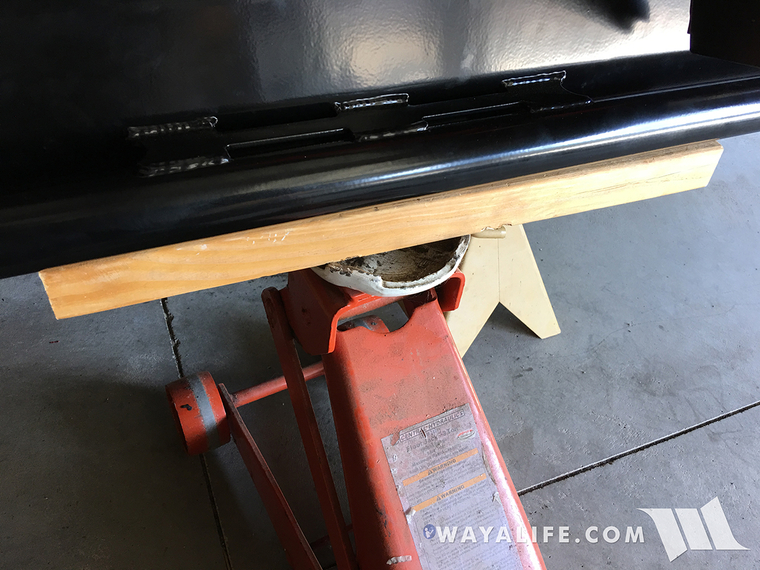

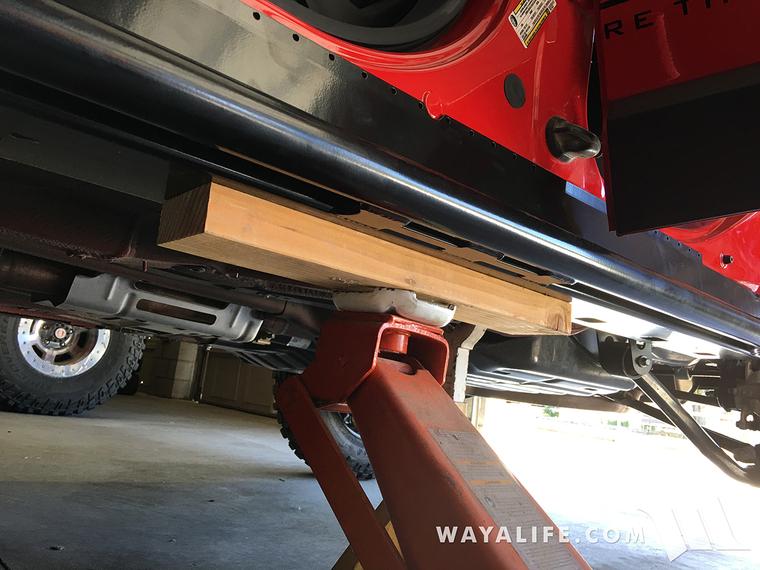

15. Open both driver side doors. Place a small piece of 2x4 on top of a floor jack and then position the driver side Daystar Rock Slider on top of it as shown.
main.php


16. Carefully raise the Daystar Rock Slider up until it's sitting flush up against the body of your Renegade. You need to make sure that the pinch seam is sitting inside the Daystar Rock Slider and that the circular cutout on the upper edge is positioned around the round dimple on the body of your Renegade as shown.
main.php


Here is a closer shot of how the circular cutout on the upper edge of the Daystar Rock Slider should be positioned around the round dimple on the body of your Renegade.
main.php


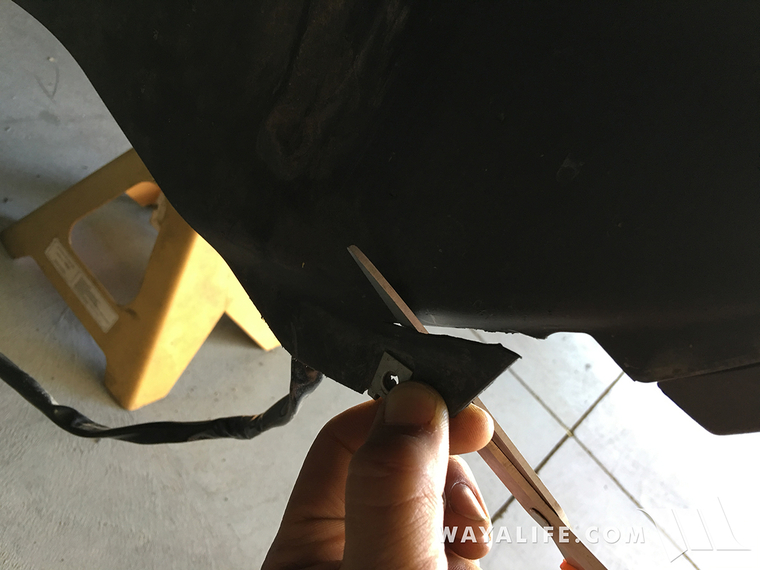

17. If it didn't go in on its own, tuck in the front fender liner between the Daystar Rock Slider and pinch seam as shown.
main.php


18. Again, if it didn't go in on its own, tuck in the rear fender liner between the Daystar Rock Slider and pinch seam as shown.
main.php

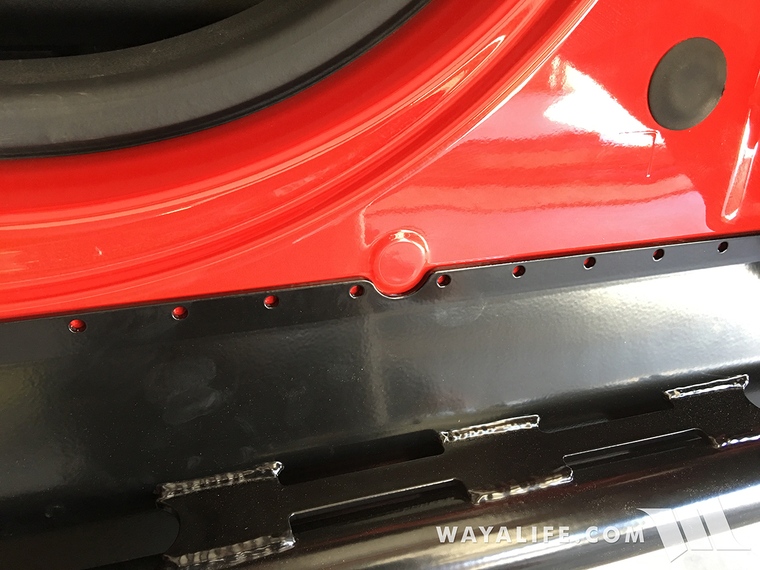

19. Using the Daystar Rock Slider as a template, mark the location of where you will need to drill holes on the inner lip of the pinch seam as shown. Being that space is really tight toward the rear of the Renegade, I ended up taking a wood pencil and breaking off the end of it so that I had something small enough to make a mark with.
main.php


20. With all 5 holes marked off, carefully lower and remove the Daystar Rock Slider out from under your Renegade. Then, use a ruler to measure and help you to determine where to recreate the marks on the outward facing lip of the pinch seam.
main.php

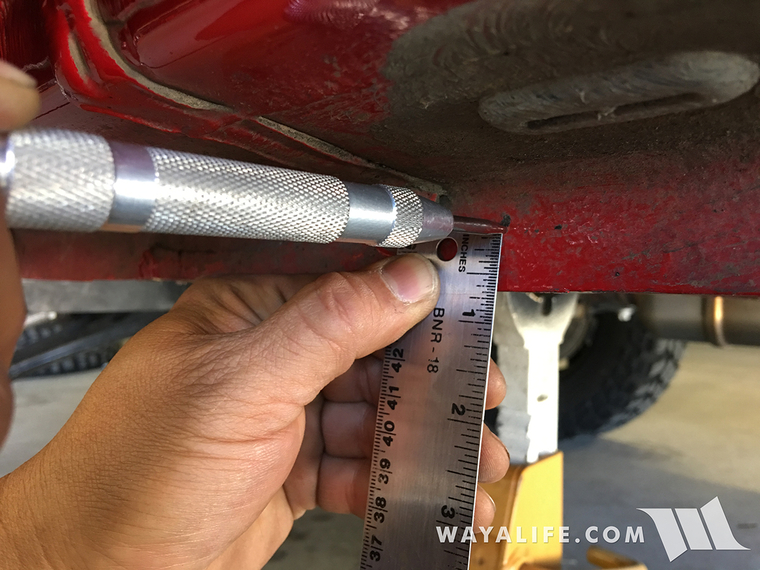

21. Use a center punch to locate the new point on the outward facing lip of the pinch seam.
main.php

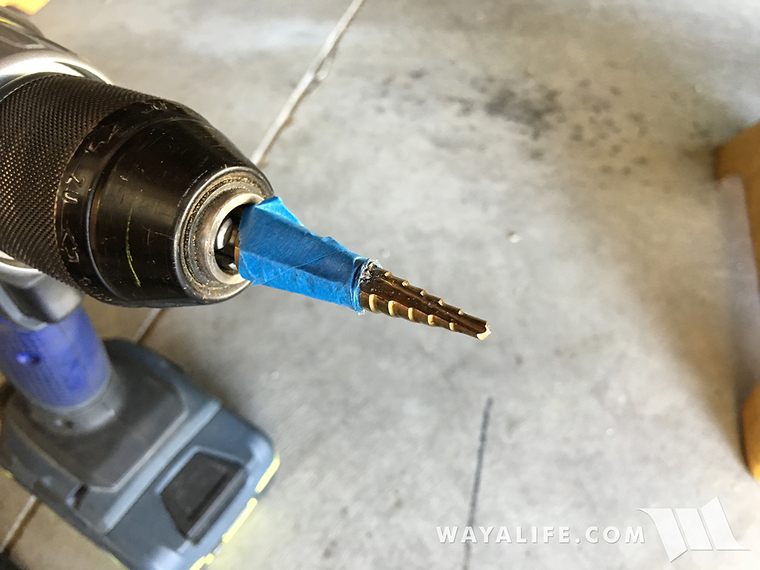

22. Drilling through the pinch seam can be tough and for a job like this, I prefer to use a unibit or step as you can really lean into the drill and without fear of breaking the drill bit. If you choose to use one, use some tape to mark off the depth needed to achieve a 1/4" hole.
main.php


23. Add a drop of cutting oil to the tip of your unibit or drill bit and then proceed to drill out the holes you marked off.
main.php

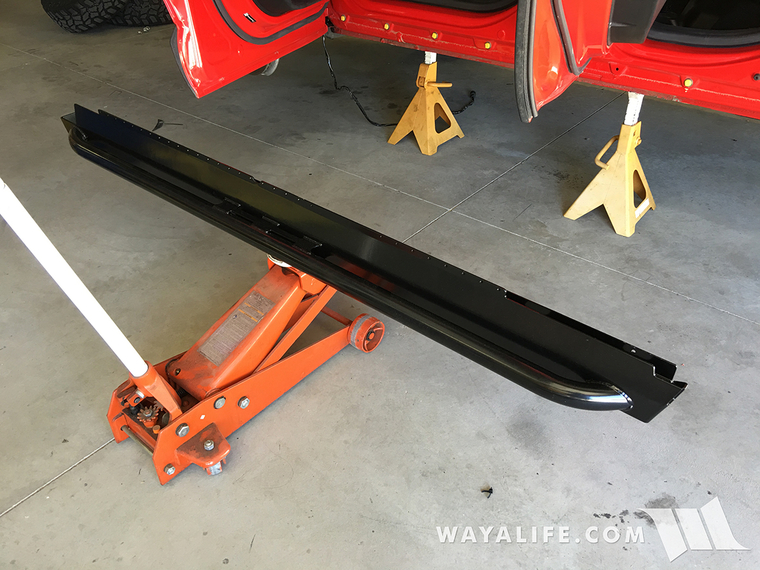

24. Carefully roll your floor jack holding your Daystar Rock Slider under your Renegade, raise it up and position it back to where it was up against the body.
main.php

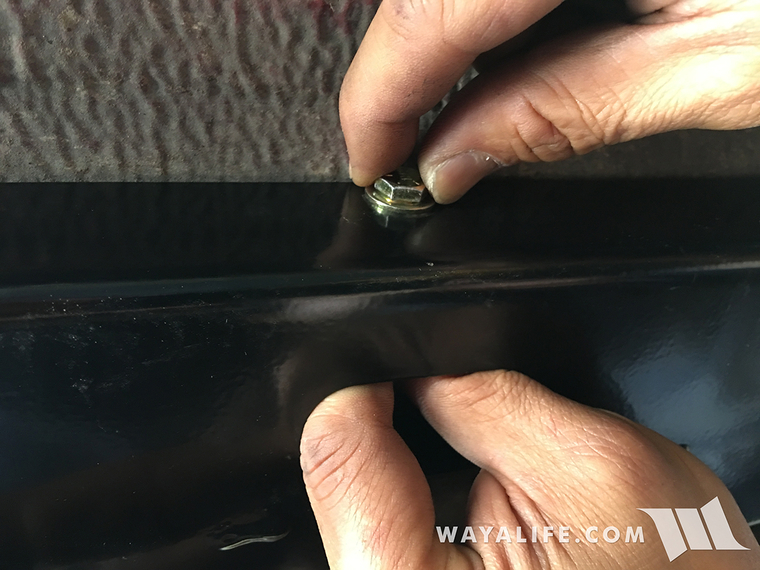

25. Using the bolts, lock nuts and washers provided with the kit, loosely secure the Daystar Rock Slider to the pinch seam on your Renegade.
main.php


26. With the Daystar Rock Slider being held up by the pinch seam, reposition your floor jack so that it's now lifting up from the edge. This will help to ensure the face of the Daystar Rock Slider is pressing firmly against the body of your Renegade.
main.php

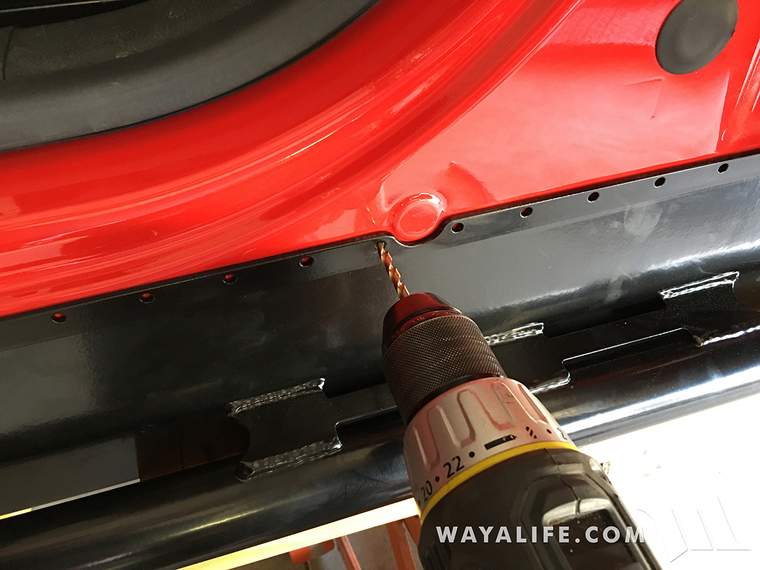

27. Using the Daystar Rock Slider as a guide, drill 3/16" holes into the body of your Renegade. If you do not have a 90° air drill, you will not be able to drill out the 3 holes closest to the front door or the 2 holes closest to the rear door.
main.php

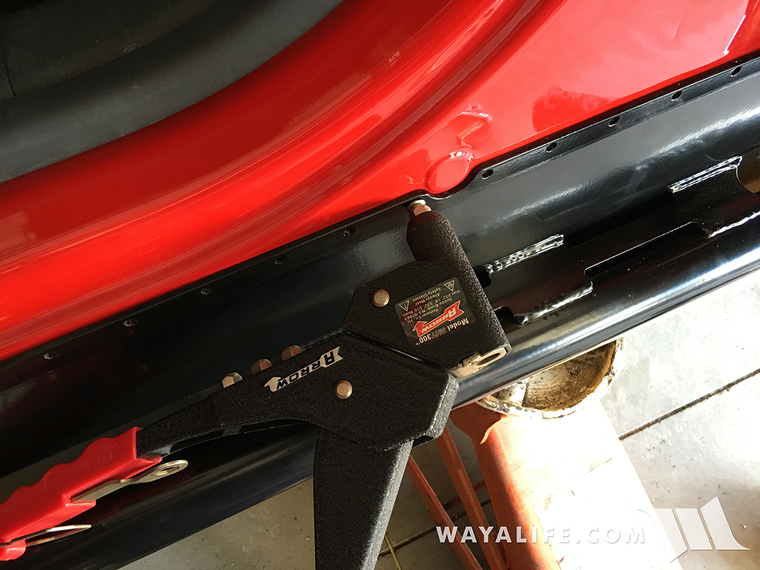

28. With all the holes drilled out and the surrounding area cleaned of metal bits, secure the Daystar Rock Slider to the body of your Renegade using the 3/16" pop rivets provided with the kit. You will need a pop rivet gun for this job.
main.php


Here's what the rivet looks like installed.
main.php

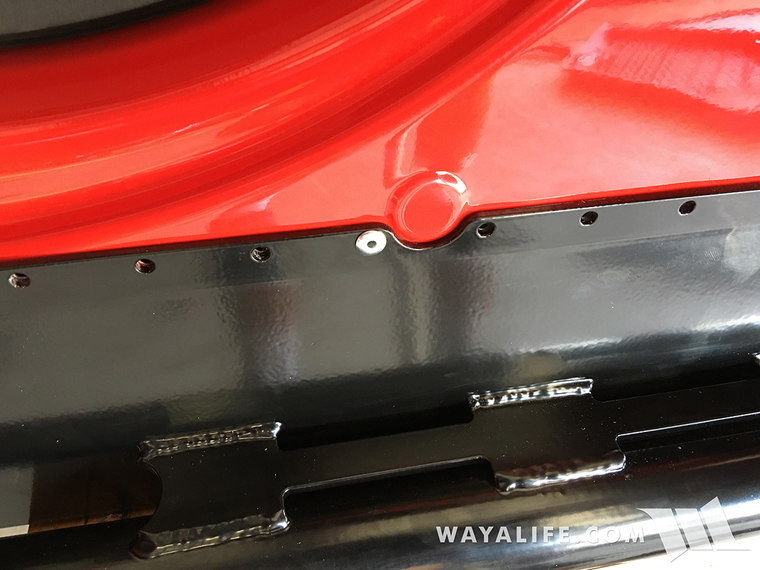

There are a total of 30 rivets you will need to install on both sides of your Renegade and it can be a tough job to do all of them by hand. I would highly recommend you use a pneumatic air actuated rivet gun for this job and you can purchase one from Harbor Freight for about $40.
main.php

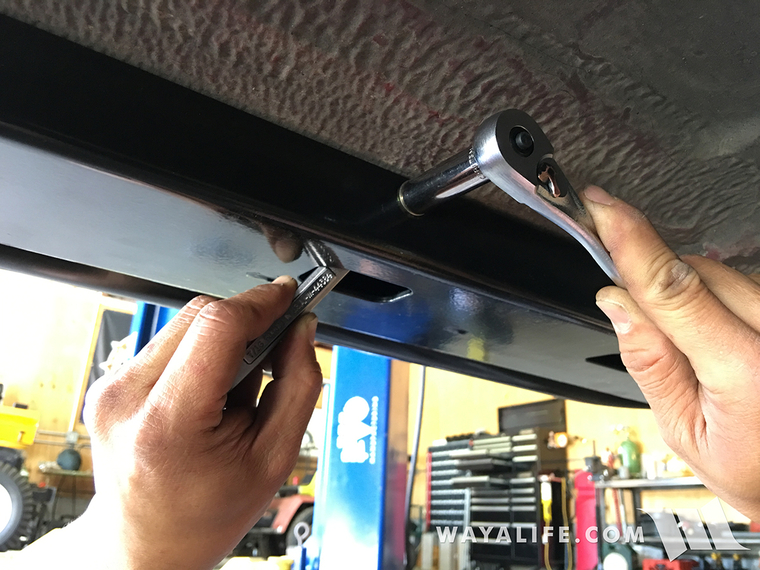

29. Climb back under your Renegade and then, using a 7/16" socket and wrench, secure the Daystar Rock Slider to the pinch seam by tightening up the bolts and nuts you had loosely installed earlier.
main.php

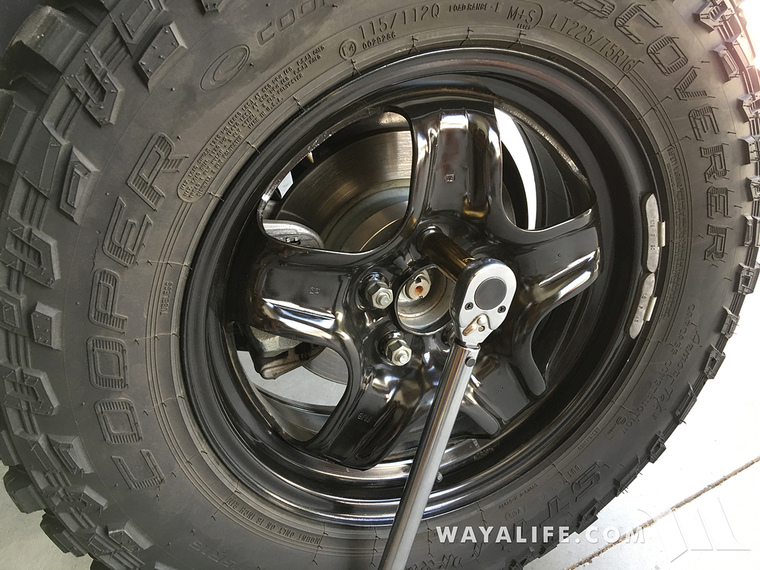

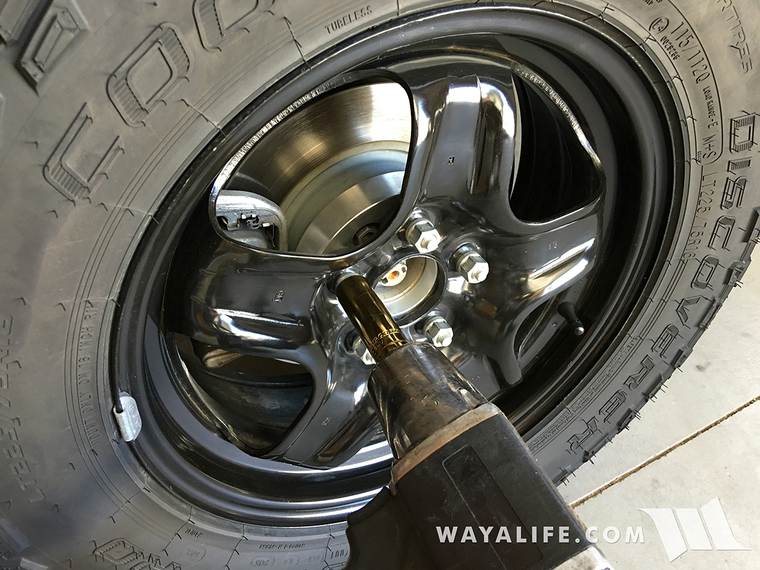

30. Reinstall your wheels, tighten up your lug bolts to 95 ft. lbs. of torque, remove the jack stands from under your Renegade and lower it back onto the ground.
main.php


Repeat all 30 steps on the passenger side and your Renegade will be ready to take on some rocks! Assuming you have all the right tools, are familiar with how to use them and have some experience working on a Jeep, you can expect this project to take about 4-5 hours to install. A pneumatic air rivet gun will help out tremendously as will a right angle air drill. Definitely take your time, measure twice and drill once and you'll get a factory like install. Please let me know if you have any questions.


wayoflife

Administrator
Staff member
Here are a few initial shots of what our Renegade looked like after the installation of our new Daystar Rock Sliders. However, for comparison sake, this is what it looked like with factory plastic rocker trim.
main.php


main.php


main.php


And, here's what it looks like now with the Daystar Rock Sliders installed.
main.php


main.php


main.php

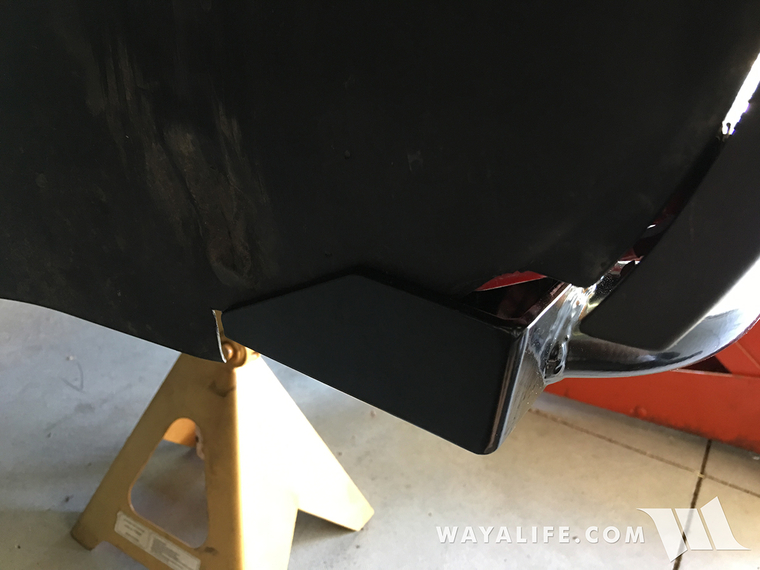

A shot of the Daystar Rock Slider from underneath to show how it's boxed in, has a smooth bottom and wraps around the ends.
main.php


main.php


Close up of the rear end of the Daystar Rock Slider to show how it wraps around the pinch seam and fender liner tucks into it for a clean factory look.
main.php


Same close up shot only from the front.
main.php


Closer side shot.
main.php


This shot shows you what the Daystar Rock slider looks like with the driver side door open.
main.php


And this shot shows what it looks like with the rear door open.
main.php


A few overall shots.
main.php


main.php


main.php


main.php


Because I've already had people asking about it, yes, you can definitely use a Hi-Lift to raise your Renegade from the Daystar Rock Sliders.
main.php


main.php


I hope this write-up has been helpful to you. I will be sure to post more pics of our Renegade out on the trail as soon as I can. :cool:


cozdude

Guy with a Red 2-Door
Wow that's a really tough install but looks so good once it's on! Thanks for the detailed write up Eddie!!


WJCO

Meme King
Wow. Nice write up. That's a lot of fricken rivets. Cool tip on the tape on the unibit too. Never thought about doing that. Could save a lot of headaches.


wayoflife

Administrator
Staff member
LOL!! Yeah, a lot of rivets for sure and it would have killed me if I had to do it all by hand. Sure glad I had a pneumatic gun for the job. :yup:


JAGS

Caught the Bug
Better not show these latest pics of Renny to my Daughter. She wants a Renegade in the worst way. Looking great Eddie. [emoji41][emoji41]


GPD_Jeep

New member
I did rolled over a big rock in Colorado and still can't get wheel insert and bottom panel straight. I can't wait to be able to install these.


Sorchea

New member
Qeustion

As amazingly capable as the Jeep Renegade is and especially so with the Trailhawk version of it, there is one thing that it really should have come with from the factory and keeps it from being a more worthy off road vehicle - ROCK SLIDERS! Without them, it doesn't take much to damage the plastic rocker trim, pinch seam and even the doors when you're playing on the rocks. Fortunately, Daystar recognized the need for rocker protection on a Renegade and came out with an awesome set that wraps all the way around the pinch seam, all the way to the front and rear of it and it even has an internal structure that presses firmly against the body to help distribute the load caused by a hard hit. Another nice feature of the Daystar Rock Sliders is the addition of a tube extending out from it to help protect your doors, act as a pivot point, can be used to Hi-Lift from and to a degree, act as a step. Of course, not only will these rock sliders do a great job of protecting your Renegade, they'll also make it look awesome. In this write-up, you get to see step by step instructions on how to install them.

What you will need
• Daystar Jeep Renegade Rock Sliders - KJ50012BK
• 7/16" Socket & Wrench
• 19mm Socket
• 5mm Allen Wrench
• Ratchet
• Torque Wrench
• Grinder w/Cutoff Wheel
• Hand Drill (90° air drill is recommended)
• Unibit or 1/4" Metal Drill Bit
• 3/16" Metal Drill Bit
• Cutting Oil
• Center Punch
• Floor Jack
• (2) Jack Stands
• 2/16" Pop Rivet Gun (Pneumatic air pop rivet gun is recommended)
• Flat Razor
• Short Wood Pencil
• Safety Glasses
• 2x4 Wood
• Scissors
• Ruler

A few shots of what the Daystar Jeep Renegade Rock Sliders look like right out of the box. As you can see, they come powder coated black, are incredibly stout and are designed to wrap around the pinch seam and have blocks within them to help distribute the load caused by hits.
main.php


main.php


main.php


This is what the bottom of them look like.
main.php


main.php


Instructions
1. Place a floor jack under the driver side frame rail of your Renegade, lift it up and then set it back down on 2 jack stands as shown.
main.php


2. Using 19mm socket, remove both driver side wheels and set them aside.
main.php


3. Using a phillips screwdriver, remove the screw securing the forward end of the plastic rocker trim to the inner fender liner and body.
main.php


4. Again, using a phillips screwdriver, remove the screw securing the rear end of the plastic rocker trim to the inner fender liner and body.
main.php


5. Located on the bottom of your Renegade's plastic rocker trim, you will find 6 plastic fasteners securing it to brackets extending from the pinch seam. Use a flathead screw driver to lower the fastener locking pins as shown.
main.php


6. Use a flathead screw driver or trim pry tool to remove the fasteners from the plastic rocker trim.
main.php


7. There is one bolt securing the plastic rocker trim to body of your Renegade and it is located next to the "NO STEP" warning label that is embossed into it. You will need to open up the rear door to access it and you will need a 5mm allen wrench to remove it.
main.php


8. Pull the plastic rocker trim down and away from your Renegade's body to separate it from the plastic mounting tabs.
main.php


9. There is one additional tab securing the plastic rocker trim to the body of your Renegade and it is hidden behind the plastic fender trim. In order to get to it, you will need to pull the fender trim away from the body.
main.php


This photo is looking from the front of the trim and in it, you can see a yellow and a white square mounting tabs. The white tab is what is holding your rocker trim in place.
main.php


10. With the plastic rocker trim freed from all the plastic mounting tabs, there will be one more plastic tongue connecting it to the fender trim. You will need to wriggle it free of the slot it's in to completely remove the rocker trim.
main.php


11. If you ended up breaking a couple of the white plastic mounting tabs during the process of separating the fender trim from the body of your Renegade, the Daystar kit does come with a handful of replacement tabs.
main.php


To install them, simply slide the square side into the mounting slots on the fender trim as shown and then push the barbed end into the respective hole on the body until it clicks into place.
main.php


12. Climb under your Renegade and then, using a flat razor, clean up any high spots in the assembly glue located on the pinch seam and rocker. As you can see in this image, I used a gasket scraper for this job.
main.php


It is important to clean the excessive glue and create a flush surface in order for proper installation of the Daystar Rock Sliders.
main.php


13. Using a die grinder with a cutoff wheel, cut off the 6 rocker trim mounts from the pinch seam as shown.
main.php


Here's what your pinch seam should look like once all the mounts have been removed.
main.php


14. Using a pair of scissors, cut off about an inch off the bottom of the plastic fender liner as shown.
main.php


You just need to cut to just past the rectangular pinch seam dimple. Once everything is installed, the remaining fender liner will tuck behind the forward end of the Daystar Rock Slider.
main.php


15. Open both driver side doors. Place a small piece of 2x4 on top of a floor jack and then position the driver side Daystar Rock Slider on top of it as shown.
main.php


16. Carefully raise the Daystar Rock Slider up until it's sitting flush up against the body of your Renegade. You need to make sure that the pinch seam is sitting inside the Daystar Rock Slider and that the circular cutout on the upper edge is positioned around the round dimple on the body of your Renegade as shown.
main.php


Here is a closer shot of how the circular cutout on the upper edge of the Daystar Rock Slider should be positioned around the round dimple on the body of your Renegade.
main.php


17. If it didn't go in on its own, tuck in the front fender liner between the Daystar Rock Slider and pinch seam as shown.
main.php


18. Again, if it didn't go in on its own, tuck in the rear fender liner between the Daystar Rock Slider and pinch seam as shown.
main.php


19. Using the Daystar Rock Slider as a template, mark the location of where you will need to drill holes on the inner lip of the pinch seam as shown. Being that space is really tight toward the rear of the Renegade, I ended up taking a wood pencil and breaking off the end of it so that I had something small enough to make a mark with.
main.php


20. With all 5 holes marked off, carefully lower and remove the Daystar Rock Slider out from under your Renegade. Then, use a ruler to measure and help you to determine where to recreate the marks on the outward facing lip of the pinch seam.
main.php


21. Use a center punch to locate the new point on the outward facing lip of the pinch seam.
main.php


22. Drilling through the pinch seam can be tough and for a job like this, I prefer to use a unibit or step as you can really lean into the drill and without fear of breaking the drill bit. If you choose to use one, use some tape to mark off the depth needed to achieve a 1/4" hole.
main.php


23. Add a drop of cutting oil to the tip of your unibit or drill bit and then proceed to drill out the holes you marked off.
main.php


24. Carefully roll your floor jack holding your Daystar Rock Slider under your Renegade, raise it up and position it back to where it was up against the body.
main.php


25. Using the bolts, lock nuts and washers provided with the kit, loosely secure the Daystar Rock Slider to the pinch seam on your Renegade.
main.php


26. With the Daystar Rock Slider being held up by the pinch seam, reposition your floor jack so that it's now lifting up from the edge. This will help to ensure the face of the Daystar Rock Slider is pressing firmly against the body of your Renegade.
main.php


27. Using the Daystar Rock Slider as a guide, drill 3/16" holes into the body of your Renegade. If you do not have a 90° air drill, you will not be able to drill out the 3 holes closest to the front door or the 2 holes closest to the rear door.
main.php


28. With all the holes drilled out and the surrounding area cleaned of metal bits, secure the Daystar Rock Slider to the body of your Renegade using the 3/16" pop rivets provided with the kit. You will need a pop rivet gun for this job.
main.php


Here's what the rivet looks like installed.
main.php


There are a total of 30 rivets you will need to install on both sides of your Renegade and it can be a tough job to do all of them by hand. I would highly recommend you use a pneumatic air actuated rivet gun for this job and you can purchase one from Harbor Freight for about $40.
main.php


29. Climb back under your Renegade and then, using a 7/16" socket and wrench, secure the Daystar Rock Slider to the pinch seam by tightening up the bolts and nuts you had loosely installed earlier.
main.php


30. Reinstall your wheels, tighten up your lug bolts to 95 ft. lbs. of torque, remove the jack stands from under your Renegade and lower it back onto the ground.
main.php


Repeat all 30 steps on the passenger side and your Renegade will be ready to take on some rocks! Assuming you have all the right tools, are familiar with how to use them and have some experience working on a Jeep, you can expect this project to take about 4-5 hours to install. A pneumatic air rivet gun will help out tremendously as will a right angle air drill. Definitely take your time, measure twice and drill once and you'll get a factory like install. Please let me know if you have any questions.
Ok in front does the bracket holding the fender liner need to be cut off as well or do it get reused to fasten the inner fender liner back to the slider.


TWX

New member
Question a year and a half after install

It's been a year and a half since you did this install, I figured you've had enough time with them to know if you'd have wanted to do anything differently in hindsight or not.

Did you do any paint or other sealant where you drilled holes, and if not, do you wish that you had? Are there any squeaks from the sliders themselves that make you wish to have used some kind of bonding agent between the slider and the body, or would it have been better to put something there to reduce the dirt/dust/debris that could get in?

I've gone through the instructions for the OEM Mopar rock sliders for the Deserthawk now that they're available through the parts departments and they call for sealing the holes that get drilled-out, but then again, those instructions are for the global market including regions prone to rust. We live in a dry, dusty desert climate much like you do so it may not be quite as essential for us.


wayoflife

Administrator
Staff member
It's been a year and a half since you did this install, I figured you've had enough time with them to know if you'd have wanted to do anything differently in hindsight or not.

Did you do any paint or other sealant where you drilled holes, and if not, do you wish that you had? Are there any squeaks from the sliders themselves that make you wish to have used some kind of bonding agent between the slider and the body, or would it have been better to put something there to reduce the dirt/dust/debris that could get in?

I've gone through the instructions for the OEM Mopar rock sliders for the Deserthawk now that they're available through the parts departments and they call for sealing the holes that get drilled-out, but then again, those instructions are for the global market including regions prone to rust. We live in a dry, dusty desert climate much like you do so it may not be quite as essential for us.

If you live out west and in the desert like we do, you won't need to seal up the holes. I had smoothed over a bead of black silicon with my finger over the top edge of the rocker guards to help keep bits of sand from getting in between it and the body but that's about it. You can't even tell that it's there. Otherwise, they don't make any noise, look great and function well.
