The Birth of Cookie Monster (aka Cymbol Monkey)
- Thread starter Weebz
- Start date
Weebz
Caught the Bug
So I’ve finally gotten a chance to start going over the Jeep following our trip. First up was taking a look to see if I could find what happened while we were on Billings Canyon. I was making a climb and heard a loud pop from the rear end. Gave us pause as it Cleary sounded like an axle shaft but that seemed highly unlikely considering my build and that being far from the weakest link. Was definitely a three wheel bandit following that. However about half an obstacle later rear was locked and working “fine”. Lasted the remainder of that trail but apparently the rear stopped locking again while playing on Poughkeepsie. Opened up the diff this weekend and was optimistic when initially didn’t see anything.
Attachments
Weebz
Caught the Bug

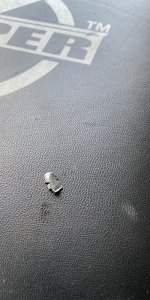

Started cycling the locker and initially it was t engaging. After messing about and switch solenoids it started working (not as a result of the solenoid). Finally gave up and started cleaning up and that’s when I started finding goodies.

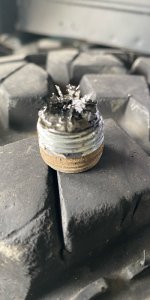

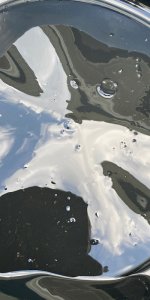

Those are all metal flames and chunks in the pan too.
Those are all metal flames and chunks in the pan too.
Attachments
Weebz
Caught the Bug
After giving up hope there decided it was time to try and get this thing leveled out too. Ever since installing the coilovers, my front passenger has been drooping horribly. I spent the better part of 4 hours adjusting preloads all around and still can’t get this damn thing to level out. I’m down at 1” preload front and rear driver side which is as low
as I can go to keep the springs in tact but the passenger is at 2 5/8 front and rear. I’m still drooping. I can’t figure it out for the life of me. I’m already 250/300 all the way around. It’s not like my Jeep is that heavy
as I can go to keep the springs in tact but the passenger is at 2 5/8 front and rear. I’m still drooping. I can’t figure it out for the life of me. I’m already 250/300 all the way around. It’s not like my Jeep is that heavy
TrainWreck618
Caught the Bug
Are you making the adjustments with your sway bar disconnected?
Sent from my iPhone using WAYALIFE
MericaMade
Active Member
Weebz
Caught the Bug
Indeed. Driving me insane.
Weebz
Caught the Bug
Yes. I actually stacked 300/300 up front while we were in Moab to try and level it and it still had a slight droop.
BaddestCross
Active Member
Oof. Those shards look familiar. Better start saving your change for a gear replacement. [emoji849]
--
Build Thread - Adventures of Fiona - https://wayalife.com/showthread.php?t=47407
--
Build Thread - Adventures of Fiona - https://wayalife.com/showthread.php?t=47407
Ddays
Hooked

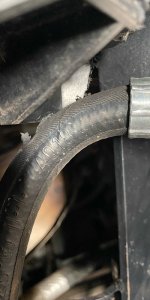

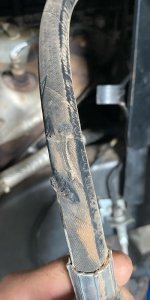

Another option is to have longer hose made for the CO res and use Accutune weld on holders. The hoses are cheap and a lot of the NAPA stores will make them. We did this on mine & wrapped heat shield on the hoses.
I happen to know a guy that ended up with an extra set of the brackets somehow. Say the word and they're yours....
Weebz
Caught the Bug
Let me know what you want for them.
wjtstudios
Hooked
Sucks you can’t get that front droop figured out. Did you try adjusting the rear upper control arms like Byron was talking about?
2015 JKUR AEV JK350
1985 CJ8 Scrambler
2015 JKUR AEV JK350
1985 CJ8 Scrambler
Weebz
Caught the Bug
Yeah. I spent the better part of a day adjusting preloads. Unloading upper arms front and rear. Nada. Can’t figure it out. Chatted with my shop today and he was scratching his head. Only thing I haven’t done was play with the lower arms. Possibly one of them is binding it up.
wjtstudios
Hooked
19YJ94
Caught the Bug
That would really be driving me insane, I hope you get it figured out Jeff.
Sent from my SM-S506DL using WAYALIFE mobile app
MericaMade
Active Member
Have you tried over preloading the droopy side to see if you can level it at all?
Mine did something similar we I bent the shock shaft. Maybe its a internal issue and binding. Have you cycled the shock by hand without coils?
Sent from my SM-G986U using WAYALIFE mobile app
Last edited:
Weebz
Caught the Bug
That’s a great call. I’ve confirmed by hand the shock moves and I can push it in but never fully cycled by hand. Hmmmmmm.
With regards to overload, yes. I put 300/300 on that side and he stood right up. Needed to adjust the preload but they would have been fine.
Weebz
Caught the Bug
Not the gears. That I can see. It’s either the ARB has a failure or its remnants from the casting that are affecting the ARB. I swapped the fluids, brought some metal into my shop and they really were scratching their heads. Basically said run it till the problem is readily repeatable.
